Product Description
- Structure:One-time molding of high-strength water hose. The inner rubber and outer rubber layers are made of PVC material and extruded in one time.
- Features:PVC is double-sided coated with double-layer polyester thread. It has good flexibility, wear resistance and pressure resistance, not easy to deform, sun protection, acid and alkali resistance, one-line molding, and inkjet coding standard.
- Applicable temperature: -5℃～65℃
Advantage
- ● Anti-aging, odorless, long service life
- ● Lighter weight, easier to operate and store
- ● Soft and elastic, no snake shape
- ● Resistant to acid and alkali corrosion

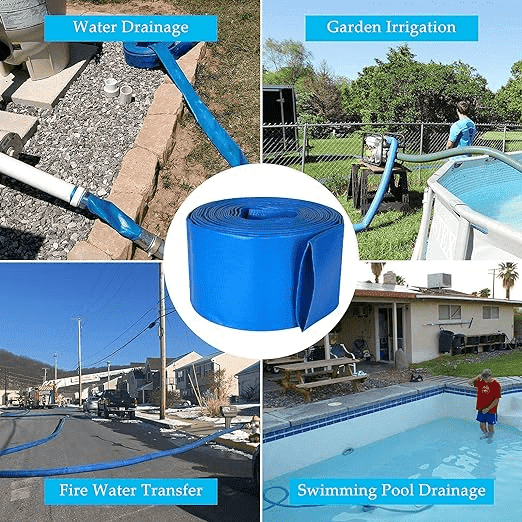

Application
Our PVC lay flat hose is available in two categories: Lightweight PVC lay flat hose and High-pressure resistant PVC lay flat hose.
Lightweight PVC lay flat hose(4/6Bar)
This type of hose is usually used for general household and agricultural purposes, such as watering gardens, farmland or household water. They have general pressure resistance and durability and are suitable for use in low voltage applications.
Product specifications
|
Size(inch) |
Inner diameter (mm) |
Wall thickness (mm) |
Maximum working pressure (Bar) |
Maximum burst pressure (Bar) |
weight(g/m) |
|
1'' |
25 |
1.3 |
4 |
15 |
150 |
|
1-1/4'' |
32 |
1.2 |
4 |
15 |
170 |
|
1-1/2'' |
38 |
1.2 |
4 |
15 |
190 |
|
2'' |
51 |
1 |
4 |
12 |
220 |
|
2.5'' |
64 |
1.1 |
4 |
12 |
300 |
|
3'' |
76 |
1.1 |
4 |
12 |
360 |
|
4'' |
103 |
1.25 |
4 |
12 |
550 |
|
5'' |
127 |
1.35 |
3.5 |
10 |
750 |
|
6'' |
153 |
1.35 |
3 |
9 |
900 |
|
8'' |
203 |
2 |
3 |
9 |
1600 |
|
10'' |
255 |
2.4 |
2.5 |
7 |
2600 |
|
12'' |
305 |
2.35 |
2 |
6 |
3000 |
|
14'' |
358 |
3 |
2 |
6 |
5000 |
|
16'' |
408 |
3 |
2 |
6 |
6000 |
|
Length ≤100m, support customization |
|||||
High-pressure resistant PVC lay flat hose (8/10Bar)
This kind of hose has higher pressure resistance and is usually used in applications that need to withstand high pressure, such as industrial uses, construction sites, water pump systems, etc.
Product specifications
|
Size(inch) |
Inner diameter (mm) |
Wall thickness (mm) |
Maximum working pressure (Bar) |
Maximum burst pressure (Bar) |
weight(g/m) |
|
3/4'' |
20 |
1.55 |
10 |
30 |
140 |
|
1'' |
25 |
1.8 |
10 |
30 |
200 |
|
1-1/4'' |
32 |
1.5 |
10 |
30 |
210 |
|
1-1/2'' |
38 |
1.7 |
10 |
30 |
290 |
|
1-1/2'' |
40 |
1.9 |
10 |
30 |
300 |
|
1-4/3'' |
45 |
2 |
10 |
30 |
350 |
|
2'' |
51 |
1.55 |
8 |
24 |
350 |
|
2'' |
51 |
1.8 |
10 |
30 |
420 |
|
2/5'' |
64 |
1.9 |
10 |
30 |
700 |
|
3'' |
76 |
2 |
8 |
24 |
660 |
|
3'' |
76 |
2.55 |
10 |
30 |
850 |
|
4'' |
103 |
2.25 |
8 |
24 |
1000 |
|
4'' |
103 |
2.7 |
10 |
30 |
1200 |
|
6'' |
153 |
3 |
8 |
24 |
2000 |
|
6'' |
203 |
3.2 |
6 |
18 |
2800 |
|
Length ≤100m, support customization |
|||||
Matching pipe joints
Connector material: There are PP materials, copper connectors, and stainless steel connectors, which can be selected according to customer needs.
PVC lay flat hoses offer a convenient and efficient solution for temporary or permanent water transfer needs, with their lightweight design, flexibility, and durability making them a preferred choice for a wide range of applications.
